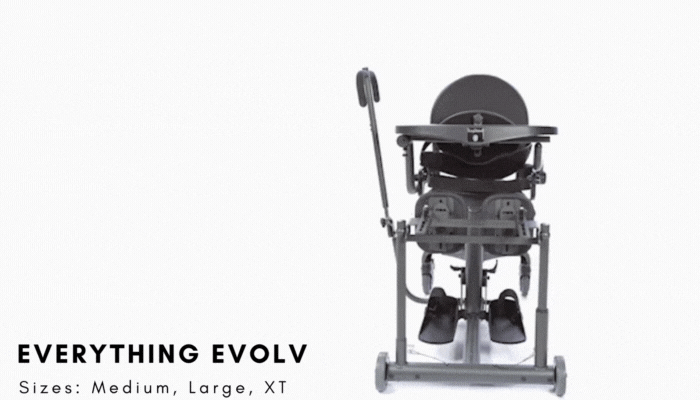

Evolv Medium
Fits individuals from 4’0-5’6″ and up to 200 lbs.
Seat Depth Range (from seat pivot) 14″-19″
Modular design makes the EasyStand Evolv the most versatile standing frame available. The Evolv is a modular sit to stand stander with over 60 support and positioning components. The base unit is functional for many users, however when more support is needed a wide variety of positioning components can be added to accommodate the most involved users.
The EasyStand Evolv is the most supportive and comfortable sit to stand stander available. With over 60 options and configurations, each unit can be built specifically for an individual or facility. These options, that would normally be custom modifications, allow a stander to be configured for specific needs.
Positioning
The optimal standing position has been perfected in the Evolv standing frame. By strategically placing the pivot points of the stander in line with the body’s natural pivot points, options like the hip supports, lateral supports, and head support remain in place from sitting to standing, minimizing shear. When positioned correctly, the contoured seat provides a maximum over-center stretch for various body types.The Evolv also accommodates for hip and knee contractures through proper positioning of the footplates and optional independent knee pads.
Accessibility and Independence
The Evolv’s open base makes independent transfers easier. A larger Transfer Seat or Rotating Seat can also be added to make transfers more manageable. To make standing pivot or lift assist transfers easier, an optional Swing-Away Front or Removable Back can be added. The user can independently achieve the standing position with the manual hydraulic actuator or optional push-button Pow’r Up Lift.
Safety and Convenience
The Evolv standing frame provides a safe and supportive transition to standing. It allows the user to stand in three easy steps – adjust, transfer, and pump up. Both caregivers and users are more comfortable with the Evolv because of the safe and easy lateral transfer and supportive transition to standing. Don’t just take our word for it – see what others have to say about the versatility and convenience of the Evolv.
Evolv Large
Fits individuals from 5’0-6’2” and up to 280 lbs.
Seat Depth Range (from seat pivot) 18″-23″
Modular design makes the EasyStand Evolv the most versatile standing frame available. The Evolv is a modular sit to stand stander with over 60 support and positioning components. The base unit is functional for many users, however when more support is needed a wide variety of positioning components can be added to accommodate the most involved users.
The EasyStand Evolv is the most supportive and comfortable sit to stand stander available. With over 60 options and configurations, each unit can be built specifically for an individual or facility. These options, that would normally be custom modifications, allow a stander to be configured for specific needs.
Positioning
The optimal standing position has been perfected in the Evolv standing frame. By strategically placing the pivot points of the stander in line with the body’s natural pivot points, options like the hip supports, lateral supports, and head support remain in place from sitting to standing, minimizing shear. When positioned correctly, the contoured seat provides a maximum over-center stretch for various body types.The Evolv also accommodates for hip and knee contractures through proper positioning of the footplates and optional independent knee pads.
Accessibility and Independence
The Evolv’s open base makes independent transfers easier. A larger Transfer Seat or Rotating Seat can also be added to make transfers more manageable. To make standing pivot or lift assist transfers easier, an optional Swing-Away Front or Removable Back can be added. The user can independently achieve the standing position with the manual hydraulic actuator or optional push-button Pow’r Up Lift.
Safety and Convenience
The Evolv standing frame provides a safe and supportive transition to standing. It allows the user to stand in three easy steps – adjust, transfer, and pump up. Both caregivers and users are more comfortable with the Evolv because of the safe and easy lateral transfer and supportive transition to standing. Don’t just take our word for it – see what others have to say about the versatility and convenience of the Evolv.
Evolv XT
Fits individuals from 6’0-6’10” and up to 350 lbs.
Seat Depth Range (from seat pivot) 19″-24″
Modular design makes the EasyStand Evolv the most versatile standing frame available. The base unit is functional for many users, however when more support is needed a wide variety of positioning options can be added to accommodate the most involved users. Extra Tall (XT) for larger users.
The EasyStand Evolv is the most supportive and comfortable sit to stand stander available. With over 60 options and configurations, each unit can be built specifically for an individual or facility. These options, that would normally be custom modifications, allow a stander to be configured for specific needs.
Positioning
The optimal standing position has been perfected in the Evolv standing frame. By strategically placing the pivot points of the stander in line with the body’s natural pivot points, options like the hip supports, lateral supports, and head support remain in place from sitting to standing, minimizing shear. When positioned correctly, the contoured seat provides a maximum over-center stretch for various body types.The Evolv also accommodates for hip and knee contractures through proper positioning of the footplates and optional independent knee pads.
Accessibility and Independence
The Evolv’s open base makes independent transfers easier. A larger Transfer Seat or Rotating Seat can also be added to make transfers more manageable. To make standing pivot or lift assist transfers easier, an optional Swing-Away Front or Removable Back can be added. The user can independently achieve the standing position with the manual hydraulic actuator or optional push-button Pow’r Up Lift.
Safety and Convenience
The Evolv standing frame provides a safe and supportive transition to standing. It allows the user to stand in three easy steps – adjust, transfer, and pump up. Both caregivers and users are more comfortable with the Evolv because of the safe and easy lateral transfer and supportive transition to standing. Don’t just take our word for it – see what others have to say about the versatility and convenience of the Evolv.
Evolv Medium Options
-
PNG50366-1 Clear Angle Adjustable Tray -
PNG51053 Column with Swivel Casters -
PNG51051 Column with Wheels -
PNG51048L Swing-Away Front-Left Mounted Trays with Swivel Casters -
PNG51048R Swing-Away Front-Right Mounted Trays with Swivel Casters -
PNG51046L Swing-Away Front-Left Mounted Trays with Wheels -
PNG50538 Clear Adjustable Shadow Tray-Left -
PNG50537 Black Molded Adjustable Shadow Tray-Left -
PNG51052 Column Front for Shadow Tray with Swivel Casters -
PNG51050 Column Front for Shadow Tray with Wheels -
PNG51044L Swing-Away Front-Left for Shadow Tray with Swivel Casters -
PNG51044R Swing-Away Front-Right for Shadow Tray with Swivel Casters -
PNG51042L Swing-Away Front-Left for Shadow Tray with Wheels -
PNG51042R Swing-Away Front-Right for Shadow Tray with Wheels -
PNG50331 Large Contoured Adjustable Chest Pad -
PNG30324 Non-Stretch Y-Style Chest Vest-20.5″Lx12.5″W -
PNG30320 Non-Stretch Y-Style Chest Vest-17.5″Lx11.5″W -
PNG30322 Non-Stretch X-Style Chest Vest-14.5″Lx10.5″W -
PNG30318 Non-Stretch X-Style Chest Vest-11″Lx9.5″W -
PNG50515 – Black Molded Adjustable Shadow Tray -
PNG50536 Lateral Supports with Flat Pads-11″-19.5″W (pair) -
PNG50535 Lateral Supports with Flat Pads-8″-16.5″W (pair) -
PNG50490-1 Black Molded Angle Adjustable Tray for Swing-Away -
PNG50504 Chest Strap – 46″-66″ -
PNG50042 Hand Grips -
P80809 Tool Pouch -
P80246 Angle Locator -
PNG50499 Easy-Adjust Seat Depth -
PNG50044 Quad Grip Handle Extension -
PNG50070 T-Style Handle Extension -
PNG30000 Large Contoured Chest Pad -
PNG30170 X-Style Chest Vest – 11″Lx9.5″W -
PNG30056 X-Style Chest Vest – 14.5″Lx10.5″W -
PNG30171 Y-Style Chest Vest – 17.5″Lx11.5″W -
PNG30021 Y-Style Chest Vest – 20.5″Lx12.5″W -
PNG51059 Column with Mobile
Evolv Large Options
-
PNG50366-1 Clear Angle Adjustable Tray -
PNG51053 Column with Swivel Casters -
PNG51051 Column with Wheels -
PNG51048L Swing-Away Front-Left Mounted Trays with Swivel Casters -
PNG51048R Swing-Away Front-Right Mounted Trays with Swivel Casters -
PNG51046L Swing-Away Front-Left Mounted Trays with Wheels -
PNG50538 Clear Adjustable Shadow Tray-Left -
PNG50537 Black Molded Adjustable Shadow Tray-Left -
PNG51052 Column Front for Shadow Tray with Swivel Casters -
PNG51050 Column Front for Shadow Tray with Wheels -
PNG51044L Swing-Away Front-Left for Shadow Tray with Swivel Casters -
PNG51044R Swing-Away Front-Right for Shadow Tray with Swivel Casters -
PNG51042L Swing-Away Front-Left for Shadow Tray with Wheels -
PNG51042R Swing-Away Front-Right for Shadow Tray with Wheels -
PNG50331 Large Contoured Adjustable Chest Pad -
PNG30324 Non-Stretch Y-Style Chest Vest-20.5″Lx12.5″W -
PNG30320 Non-Stretch Y-Style Chest Vest-17.5″Lx11.5″W -
PNG30322 Non-Stretch X-Style Chest Vest-14.5″Lx10.5″W -
PNG30318 Non-Stretch X-Style Chest Vest-11″Lx9.5″W -
PNG50515 – Black Molded Adjustable Shadow Tray -
PNG50536 Lateral Supports with Flat Pads-11″-19.5″W (pair) -
PNG50535 Lateral Supports with Flat Pads-8″-16.5″W (pair) -
PNG50504 Chest Strap – 46″-66″ -
PNG50015-1 Multi-Adjustable Foot Plates -
PNG50042 Hand Grips -
P80809 Tool Pouch -
P80246 Angle Locator -
PNG50499 Easy-Adjust Seat Depth -
PNG50044 Quad Grip Handle Extension -
PNG50070 T-Style Handle Extension -
PNG30000 Large Contoured Chest Pad -
PNG30170 X-Style Chest Vest – 11″Lx9.5″W -
PNG30056 X-Style Chest Vest – 14.5″Lx10.5″W -
PNG30171 Y-Style Chest Vest – 17.5″Lx11.5″W -
PNG30021 Y-Style Chest Vest – 20.5″Lx12.5″W -
PNG51059 Column with Mobile
Evolv XT Options
-
PNG50500 Easy-Adjust Seat Depth -
PNG51056 Column Front for Shadow Tray with Swivel Casters -
PNG51054 Column Front for Shadow Tray with Wheels -
PNG51055 Column with Swivel Casters -
PNG51055 Column with Wheels -
PNG50538 Clear Adjustable Shadow Tray-Left -
PNG50537 Black Molded Adjustable Shadow Tray-Left -
PNG50331 Large Contoured Adjustable Chest Pad -
PNG30324 Non-Stretch Y-Style Chest Vest-20.5″Lx12.5″W -
PNG30320 Non-Stretch Y-Style Chest Vest-17.5″Lx11.5″W -
PNG30322 Non-Stretch X-Style Chest Vest-14.5″Lx10.5″W -
PNG30318 Non-Stretch X-Style Chest Vest-11″Lx9.5″W -
PNG50515 – Black Molded Adjustable Shadow Tray -
PNG50536 Lateral Supports with Flat Pads-11″-19.5″W (pair) -
PNG50535 Lateral Supports with Flat Pads-8″-16.5″W (pair) -
PNG50504 Chest Strap – 46″-66″ -
PNG50042 Hand Grips -
P80809 Tool Pouch -
P80246 Angle Locator -
PNG50044 Quad Grip Handle Extension -
PNG50070 T-Style Handle Extension -
PNG30000 Large Contoured Chest Pad -
PNG30170 X-Style Chest Vest – 11″Lx9.5″W -
PNG30056 X-Style Chest Vest – 14.5″Lx10.5″W -
PNG30171 Y-Style Chest Vest – 17.5″Lx11.5″W -
PNG30021 Y-Style Chest Vest – 20.5″Lx12.5″W -
PNG50328 Adjustable/Removable Actuator Handle -
PNG50517 Clear Adjustable Shadow Tray -
PNG50247-1 Black Molded Tray -
PNG50248-1 Clear Tray -
PNG50366-1 Clear Angle Adjustable Tray -
PNG50372-1 Narrow Clear Tray -
PNG30030 Foot Straps-15″L -
PNG30031 Secure Foot Straps-15″L -
PNG50161 Hip Supports – 10″-15″ Range -
PNG50198 Hip Supports – 12″-17″ Range
Evolv Medium Specs
Base Unit
| Approximate Height Range | 4’0-5’6″ | 122-168cm | |
| Weight Limit | 200lbs | 90kg | |
| Maximum Mass (fully loaded unit) | 153lbs | 69kg | |
| Seat Depth Range (from seat pivot) | 14″-19″ | 36-48cm | |
| Seat to Footplate Range (from seat pivot) | 11”-18” | 28-46cm | |
| Knee Width (center to center) | 9” | 23cm | |
| Kneepad Depth Range (from seat pivot) | 2”-7” | 5-18cm | |
| Seat Height | 21.5” | 55cm | |
| Seat Dimensions | 16″Wx17.5″L | 40x44cm | |
| Standard Tray Size | 21”x24” | 53x61cm | |
| Tray/Chest Pad Depth Range (from seat pivot) | 0”-10.5” | 0-27cm | |
| Standard Tray Height Range (from seat pivot) | 15.5”-30.5” | 39-77cm | |
| Footprint (at widest points) | 26.5”x33.5” | 67x85cm | |
| Weight of Basic Unit | 101lbs | 46kg | |
| Frame Color | Charcoal | ||
| Standard Upholstery Color | Black | ||
| Locking Caster Diameter | 5″ | 13cm | |
| Footplates-Plantar | 10° in 3 increments | (not Glider) | |
| Footplates-Dorsi | 10° in 3 increments | (not Glider) | |
| Footplates- Toe-out | 15 degrees in 3 increments | (not Glider) |
Shadow Tray
| Shadow Tray 10″ Height from seat (acrylic tray is 1″ shorter) | 10” | 25cm | |
| Weight of Evolv w/Shadow | 115lbs | 52kg | |
| Shadow Tray Size | 21”x24” | 53x61cm |
Mobile
| Weight of Mobile Option | 38lbs | 17kg | |
| Weight of Evolv Mobile (all sizes) | 135lbs | 61kg | |
| Footprint (including pushrims) | 28.5″x36″ | 72x91cm | |
| Wheelbase | 29.75″ | 76cm | |
| Pushrim Height (from floor) | 45″ | 114cm | |
| Wheel Locks | 1/4 turn rotation to lock/unlock | ||
| Drive Chain Tensioning Method | Self -Tensioning Gravity Operated | ||
| Mobile Tray Size | 18″Wx19″L | 46x48cm |
Options
| Front Swivel Casters | Add 5″ W to Footprint | 13cm | |
| Adjustable/Removable Actuator Handle Range | +/- 15° from neutral | ||
| T-Style Handle-Extends (each direction) | 6” | 15cm | |
| Foot straps- Fits foot height | 4″-6.5″ | 10-17cm | |
| Secure Foot Straps-Fits foot height | 4”-6.5” | 10-17cm | |
| Seat – Size of Roho® Insert | 7”x12” | 18x30cm | |
| Transfer Seat Dimensions | 20″Wx17.5″L | 50x44cm | |
| Hip Supports-Medium Width | 9″-15″ | 23-38cm | |
| Hip Supports-Large Width | 11″-17″ | 28-43cm | |
| Hip Supports Pad Size | 4″Wx6″H | 10x15cm | |
| Independent Kneepad Height Range (from seat pivot) | +5″ to -5.25″ | +13 to -13cm | |
| Independent Kneepad Depth Range (from front of seat) | 1″-7.5″ | 3-19cm | |
| Independent Kneepad Width Range (center to center) | 9”-13.5” | 23-34cm | |
| Independent Kneepad Size | 7″Wx9″H | 18x23cm | |
| Independent Kneepad Roho Insert Size | 5″Wx7.5″H | 13x19cm | |
| Clear Acrylic Tray Size | 21”x24” | 53x61cm | |
| Oversized Clear Tray Size | 29″x22″ | 74x56cm | |
| Angle Adjustable Tray (Angle range) | 0-35° | ||
| Large Contoured Chest Pad (Approximate size) | 9.5”x15” | 24x38cm | |
| Low Back (Flat/Contoured) Height from Seat | 13” | 33cm | |
| High Back (Flat/Contoured) Height from Seat | 19” | 48cm | |
| Velcro Positioning Belt (Hip Circumference) | 26”-55” | 66-140cm | |
| Positioning Belt w/ Airline Buckle (Hip Circumference) | 26”-55” | 66-140cm | |
| Small Chest Strap-Pad Size | 5″Wx19″L | 13x48cm | |
| Small Chest Strap-fits users chest measuring | 30″-46″ | 76-117cm | |
| Large Chest Strap-Pad size | 5″Wx24″L | 13x60cm | |
| Large Chest Strap-fits users chest measuring | 34″-54″ | 86-137cm | |
| X-Style Chest Vest-Medium | 11”Lx9.5″W | 28x24cm | |
| X-Style Chest Vest-Large | 12.5”Lx10”W | 32x26cm | |
| Y-Style Chest Vest-Medium | 17.5”Lx11.5”W | 44x29cm | |
| Y-Style Chest Vest-Large | 20.5”Lx12.5″W | 52x32cm | |
| High Mount Chest Vest Bracket Positions | 18″, 19″, 20″, 21″ H (above hip Pivot) | 46, 48, 51, 53cm H (above hip Pivot) | |
| Lateral Supports-Medium Width Range | 9”-15” | 23-38cm | |
| Lateral Supports-Large Width Range | 12″-18″ | 30-46cm | |
| Lateral Supports-Fore/Aft Pad Adjustment | 3″ | 7.5cm | |
| Lateral Supports-Height Adjustment by swapping brakets left/right | 2″ | 5cm | |
| Lateral Supports-Height Adjustment via mounting bolts on the pads | 2″ | 5cm | |
| Lateral Supports-Height Range of lateral pad from hip pivot | 4″ | 10-30cm | |
| Lateral Supports-Rotational setting of lateral pad via bolt mounting holes | 90, 180, 270, or 360° position | Long portion of pad may be installed pointing up, down, fore or aft. | |
| Lateral Support Pad Size | 4″Wx6″H | 10x15cm | |
| Head Support-Medium Height Range (from top of the seat to middle of headrest) | 21”-30.5” | 53-77cm | |
| Head Support-Large Height Range (from top of the seat to middle of headrest) | 24”-33.5” | 61-85cm | |
| Head Support-Depth Range | 3.75″ | 10cm | |
| Head Support-Fore/Aft Adjustment in relation to back pad | Flush with back aft to 3-3/4 | 0 to +9.5cm |
